Handling sulfuric acid (H₂SO₄) presents one of the most severe material selection challenges in industrial engineering. While standard 300-series grades serve as the baseline, process volatility quickly pushes them beyond their safe boundaries. Relying on standard alloys near their operational limits frequently demands complex anodic protection systems. These supplementary systems introduce hidden failure points and heavy maintenance burdens. Sudden temperature spikes, minor concentration shifts, or unexpected trace impurities can trigger catastrophic localized corrosion. We will explore the precise engineering thresholds where standard materials fail under actual plant conditions. You will learn how metallurgical upgrades mitigate corrosion risks and prevent unscheduled downtime. This guide details why upgrading to a highly alloyed 904L stainless steel pipe for sulfuric acid service is an essential strategy for ensuring long-term process security.
The 316L Dead Zone: 316L rapidly degrades in mid-concentration sulfuric acid (typically 20% to 60%) at elevated temperatures; 904L is specifically alloyed to bridge this gap.
The Copper Advantage: The addition of 1.5% copper in 904L provides a unique passivation mechanism against reducing acids like H₂SO₄.
The Chloride Multiplier: When chloride impurities enter the sulfuric acid stream, 316L becomes highly susceptible to pitting and crevice corrosion, necessitating the switch to a super austenitic grade.
Many engineering teams standardize on 316L piping. It saves initial capital expenditure. However, this choice introduces severe operational risks. Plant parameters rarely remain perfectly stable. When concentrations or temperatures deviate, piping systems fail rapidly.
We observe specific failure zones for standard austenitic grades. Engineers consider 316L safe only at extremes. It handles very dilute acid (below 5%) or highly concentrated acid (above 90%) at room temperature. The mid-range concentration zone proves catastrophic. Once the concentration reaches 20% to 60%, corrosion rates spike. Applying heat accelerates this degradation exponentially. The protective oxide layer cannot sustain itself under these aggressive reducing conditions.
Facilities often try to stretch operational limits. They install anodic protection to force standard pipes into harsher duties. This creates a dangerous fallacy. You rely entirely on a secondary electrical system. If the protection fails, the consequences are immediate. Power outages or electrode degradation strip away the protective film. Rapid, unchecked piping failure follows. You trade metallurgical reliability for electrical dependency.
Furthermore, impurity sensitivity remains a major blind spot. Real-world chemical lines carry unmapped variables. Trace chlorides enter the stream regularly from feed water or precursor chemicals. Standard 300-series pipes show immense vulnerability to these impurities. Chlorides break down the passive oxide layer. Pitting and stress corrosion cracking destroy the metal structure long before general thinning occurs. Engineers must account for these real-world contaminants rather than relying on pure laboratory data.
To overcome these limitations, engineers turn to advanced metallurgy. You must specify a super austenitic stainless steel pipe. Alloy 904L (UNS N08904) stands out in this category. It serves as the definitive chemical processing pipe for severe environments. Engineers designed it explicitly to handle reducing acids.
A thorough metallurgical evaluation reveals why it performs so well. The alloy chemistry tackles specific corrosion mechanisms directly.
High Nickel (23%~28%) and Molybdenum (4%~5%): This combination drastically outperforms standard grades. It provides superior resistance to chloride-induced stress corrosion cracking. The high molybdenum content halts localized pitting before it propagates deep into the pipe wall.
The Role of Copper (1%~2%): Copper fundamentally changes the material behavior. It actively decelerates corrosion rates in non-oxidizing environments. This makes it highly effective against dilute and intermediate sulfuric acid. Standard alloys lack this crucial defense mechanism.
Low Carbon (≤ 0.020%): Welding often creates weak points in piping networks. High carbon leads to carbide precipitation at the grain boundaries. The extreme low carbon in N08904 prevents this sensitization. You maintain full corrosion resistance at every joint. Post-weld annealing is completely unnecessary.
These elements work synergistically. They build a robust, self-repairing passive layer. The material survives violent fluctuations in acid strength and temperature. You gain a wider operational safety margin.
Choosing the right material requires an objective framework. You must know exactly when the upgrade becomes mandatory. Engineers rely on standard 0.1 mm/year isocorrosion curves. These diagrams plot safe operational zones based on temperature and concentration.
Sulfuric Acid Concentration (%) | Maximum Safe Temp for 316L (°C) | Maximum Safe Temp for 904L (°C) | Corrosion Behavior Note |
|---|---|---|---|
5% (Dilute) | 40°C | 70°C | Copper significantly slows acid attack. |
20% - 60% (Mid-Range) | Not Recommended | 50°C - 60°C | Standard alloys dissolve rapidly; super austenitic bridges the gap. |
80% (Concentrated) | Not Recommended | 70°C | High nickel stabilizes the passive film. |
98% (Highly Concentrated) | 40°C (Low Velocity) | 60°C+ (Moderate Velocity) | Flow-induced corrosion risks increase. |
This chart illustrates the performance gap clearly. However, the 98% concentration edge case requires special attention. Technical forums frequently debate this scenario. While standard or even carbon steel handles pure 98% acid adequately, the reality is more complex. Problems arise the moment fluid velocity increases. Flow-induced corrosion strips away the delicate iron sulfate film on lower alloys.
Furthermore, dilution occurs during plant shutdowns or washing cycles. Acid absorbs atmospheric moisture rapidly. The concentration drops into the highly corrosive mid-range. Upgrading becomes necessary to survive these transition periods without suffering severe internal wall loss.
We must also evaluate performance in mixed media. Industrial processes rarely involve pure acids. Sulfuric acid often carries phosphoric acid or chloride contaminants. Standard grades suffer immediate breakdown under these combined attacks. The high alloy composition maintains its integrity even when these aggressive impurities spike unpredictably.
We acknowledge the significant upfront material cost multiplier. High-alloy materials demand a higher initial investment. However, evaluating purely on initial capital ignores massive systemic risks. You must prioritize process security.
You must calculate the true cost of a sudden failure. Consider the compounding factors:
Production Downtime: Every hour a line sits idle costs exponential revenue. Halting a chemical process for emergency repairs ruins entire production batches.
Environmental Cleanup: Acid spills require specialized remediation teams. Regulatory penalties compound the disaster. You face intense scrutiny from environmental agencies.
Safety Hazards: Leaking highly corrosive fluids endangers plant personnel immediately. Containing a high-pressure sulfuric blow-out is incredibly dangerous.
Labor Burdens: Emergency piping replacements demand premium labor rates. Expedited material shipping adds unnecessary strain to maintenance budgets.
Scalability and lifecycle metrics tell the true story. Specifying a higher grade extends the mean time between failures (MTBF). You shift the replacement timeline from months to decades. This strategy flattens the operational expense curve for chemical plants. You secure uninterrupted production runs. The reduction in maintenance interventions fully justifies the initial specification upgrade.
Implementation realities dictate a strict approach to procurement. Buying these specialty alloys requires rigorous quality assurance. You cannot treat them like commercial-grade structural steel. Small deviations in chemistry lead to massive failures in the field.

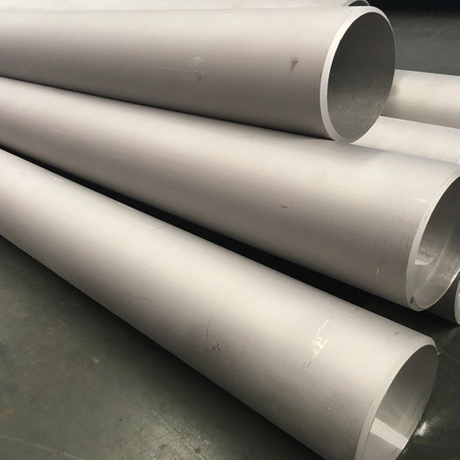

You must decide when to specify a N08904 seamless pipe. Seamless configurations handle high-pressure environments flawlessly. They offer an absolute zero-leak tolerance for critical transfer lines. Welded formats serve better for larger diameters or low-pressure gravity drains. However, seamless pipes eliminate the longitudinal weld seam entirely. This removes the most common initiation site for localized corrosion. For concentrated acid under high pump pressure, seamless is non-negotiable.
The global supply chain presents several dangerous traps. Buyers must stay vigilant against dual-certified materials. Some suppliers offer materials claiming to meet multiple broad standards simultaneously. They merely meet the bare minimum requirements. This compromises the specific chemical balance required for severe acid service.
You must require strict Material Test Reports (MTRs). Verify the exact chromium, nickel, and copper compositions before accepting delivery. Do not accept generic certifications. Identify the correct global standards. Ensure your order explicitly references ASTM B677 or equivalent ASTM A312 specifications for this specific grade.
Before finalizing any request for quotation (RFQ), establish exact flow conditions. You need to map out temperature maximums, fluid velocity, concentration ranges, and aeration levels. Share this granular data directly with your manufacturer. A properly specified 904L stainless steel pipe for sulfuric acid will only perform optimally if it matches your precise operational reality.
Standard 316L remains adequate for strictly controlled, pure, extreme-end concentrations. However, it fails predictably under dynamic conditions. Upgrading to a specialized super austenitic alloy is the necessary engineering choice for dynamic, intermediate, or impurity-laden chemical processes. You eliminate the guesswork from your maintenance schedules.
Audit Your Data: Cross-reference your isocorrosion charts against actual plant operating temperatures, not just theoretical design limits.
Identify Impurities: Test your acid streams for trace chlorides to prevent unexpected pitting failures.
Plan for Shutdowns: Account for acid dilution caused by atmospheric moisture absorption during routine maintenance cycles.
Upgrade Critical Zones: Replace standard piping in high-velocity elbows and pump discharges to eliminate flow-induced corrosion immediately.
A: No. While standard grades handle pure 98% concentration at ambient temperatures, introducing chlorides changes the dynamics entirely. Chlorides initiate rapid pitting and crevice corrosion. They destroy the passive layer. You must upgrade to a super austenitic alloy or Alloy 20 to withstand this compound risk.
A: It requires more stringent controls. You must use matching or over-alloyed filler metals, such as AWS ER385. High heat input causes hot cracking. Welders must use rigorous shielding gas protocols and maintain low interpass temperatures. Its ultra-low carbon content, however, successfully prevents carbide precipitation.
A: You must move to higher nickel alloys when dealing with boiling acid across all concentrations. If operating temperatures exceed 70°C in the highly corrosive mid-range (20% to 60%), even super austenitic grades fail. Alloy 20 or Hastelloy becomes necessary for these extreme high-heat environments.
A: Super austenitic alloys belong to a specialized niche market. Mills produce them in smaller, targeted batches rather than continuous commercial runs. The complex metallurgy requires precise melting controls and extended cooling processes. This batch production reality naturally extends lead times for seamless configurations.
