The Core Differences Between BA (Bright Annealed) And EP (Electropolished) Tubes

I. Fundamental Process Differences

• BA (Bright Annealing):
  High-temperature annealing (typically 1000–1150°C) in an inert atmosphere (e.g., hydrogen or argon) prevents surface oxidation, preserving the metal’s natural luster. No chemical contact; smooth surfaces are achieved solely through rapid cooling.

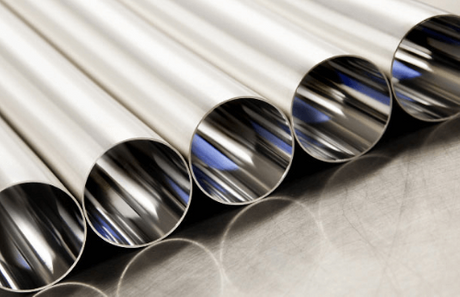

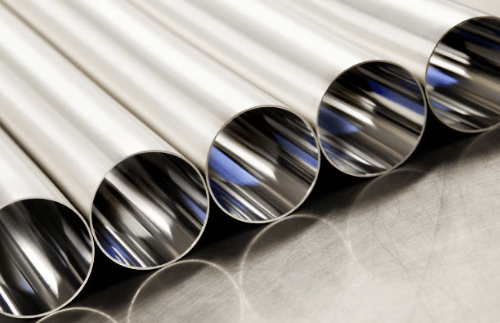

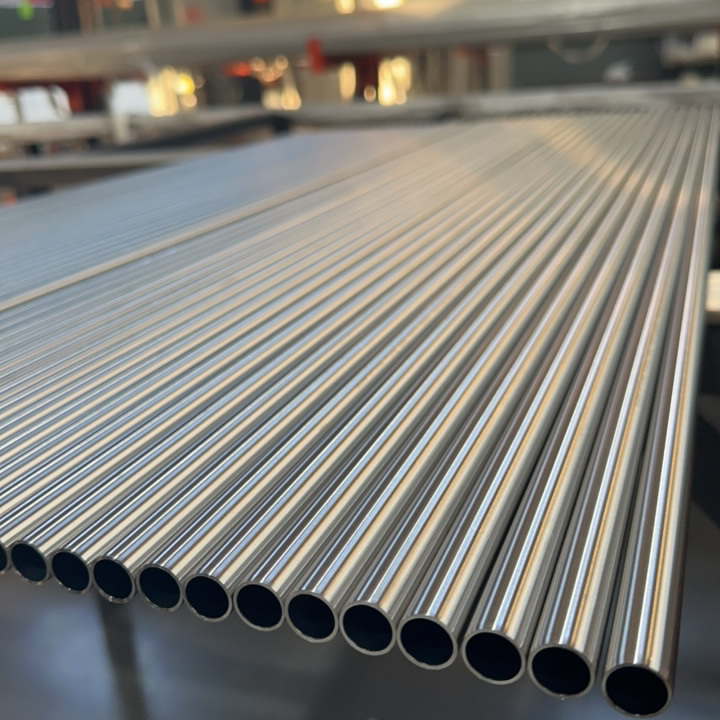

• EP (Electropolishing):
  Electrochemical dissolution actively removes surface material (20–30 μm) in acidic electrolytes (e.g., sulfuric-phosphoric mix), forming a mirror-like passive layer. An active surface transformation process.




II. Key Performance Comparison

1. Surface Roughness (Ra)

• BA Tubes: 0.3–0.5 μm (depends on raw tube precision).

• EP Tubes: ≤0.2 μm (optimizable to 0.1 μm, achieving mirror finish).

2. Corrosion Resistance

• BA Tubes:
  Relies on chromium oxide (Cr₂O₃) layer from annealing. Effective against general corrosion, but residual micro-cracks may initiate corrosion.

• EP Tubes:
  Eliminates microscopic peaks, reducing stress concentration. Pitting resistance increases by 30%+; surface chromium content rises to 25%+ (verified via ASTM A967 nitric acid test).




III. Selection Guidelines

When to Choose BA Tubes

• Cost-sensitive projects: BA costs 60–70% of EP.

• Non-ultra-pure media: Beverage transfer, general chemical pipelines (e.g., 316L BA tubes for dairy lines).

• Simple non-welded systems: Welding BA tubes requires re-treatment of heat-affected zones.

When EP Tubes Are Essential

• Pharma/Biotech: Requires endotoxin levels <0.25 EU/mL (e.g., vaccine production lines).

• Semiconductor Manufacturing: Class 1 cleanroom ultra-pure gas transfer (e.g., N₂, Ar).

• Highly corrosive environments: e.g., >40% sulfuric acid, where EP doubles 316L service life.




IV. Common Misconceptions Addressed

Q1: Can BA tubes replace EP tubes to cut costs?

Depends critically on media and cleanliness class:

• Transferring pure water/weak alkalis: BA meets ASME BPE "Utility Grade".

• Contact with cell culture media/acid-base solvents: EP is mandatory to prevent metal ion leaching.

Q2: Does EP weaken material strength?

No impact on bulk properties:
EP removes only 20–30 μm (<1% wall thickness); base strength/elongation unchanged (per ASTM B912).

Q3: How to treat welded BA tubes?

Requires local repolishing:
Heat-affected zones develop oxidation tints. Must be mechanically polished + passivated to restore corrosion resistance.

V. Process Workflow

BA Tube Production:
Raw tube → Inert gas annealing (1000–1150°C) → Rapid cooling → NDT → Final product
EP Tube Production:
Raw tube → Alkaline degreasing → Acid activation → Electropolishing → Passivation → UPW rinse → Drying/packaging

Conclusion

• BA Tubes = Cost-effective clean solution (meets ISO 2037 industrial grade).

• EP Tubes = Ultimate clean solution (meets ASME BPE/semiconductor grade).
