C22 Nickel Alloy, also known as Hastelloy C-22 (a registered trademark of Haynes International), is a versatile nickel-chromium-molybdenum-tungsten alloy renowned for its exceptional corrosion resistance in aggressive environments. Designed to withstand both oxidizing and reducing conditions, it has become a cornerstone material in industries demanding reliability under extreme chemical, thermal, and mechanical stress.
C22’s optimized chemical composition contributes to its outstanding performance:
Nickel (Ni):~56% (base metal for ductility and thermal stability).
Chromium (Cr): ~22% (enhances resistance to oxidizing agents like chlorides and nitric acid).
Molybdenum (Mo):~13% +
Tungsten (W):~3% (synergistically improve resistance to reducing acids, pitting, and crevice corrosion).
Iron (Fe): ~3% (balance).
Trace elements: Low carbon (<0.015%) to minimize carbide precipitation during welding.
1. Corrosion Resistance:
- Excels in harsh acids (HCl, H₂SO₄, HNO₃), chlorides, and mixed acid environments.
- Resists pitting, stress corrosion cracking (SCC), and crevice corrosion, even in high-temperature settings.
2. Thermal Stability:
- Maintains integrity in temperatures up to **1,200°C (2,192°F)**.
3. Mechanical Strength:
- High tensile and yield strength, with good fatigue resistance.
4. Fabrication Flexibility:
- Weldable via TIG, MIG, or plasma arc methods using matching filler metals (e.g., ERNiCrMo-10).
C22’s unique properties make it indispensable in sectors where failure is not an option:
1. Chemical Processing:
- Reactors, heat exchangers, and piping systems handling corrosive acids, solvents, or chlorinated compounds.
- Example: Production of acetic acid, chlorine, and pharmaceuticals.
2. Pollution Control:
- Scrubbers, flue gas desulfurization (FGD) systems, and waste treatment plants exposed to acidic gases (SOₓ, NOₓ) and brine solutions.
3. Oil & Gas:
- Downhole components, subsea equipment, and sour gas pipelines resistant to H₂S, CO₂, and saline environments.
4. Pharmaceuticals:
- Reactors and distillation columns for aggressive drug synthesis processes.
5. Nuclear and Energy:
- Spent nuclear fuel reprocessing systems and geothermal energy installations.
6. Marine Engineering:
- Seawater handling systems, pumps, and valves in offshore platforms.
Versatility: Outperforms stainless steels (e.g., 316L) and rivals alloys like C276 in mixed acid resistance.
Weldability:Low carbon content reduces sensitization risks, enabling reliable welded joints.
Longevity: Minimizes downtime due to corrosion-related failures, lowering lifecycle costs.
Cost:Higher initial cost compared to stainless steel, but justified by extended service life.
Machining: Requires specialized tooling and techniques due to work-hardening tendencies.
Thermal Processing:Annealing at 1,120–1,175°C followed by rapid cooling is critical to retain corrosion resistance.
C22 complies with international standards for quality assurance:

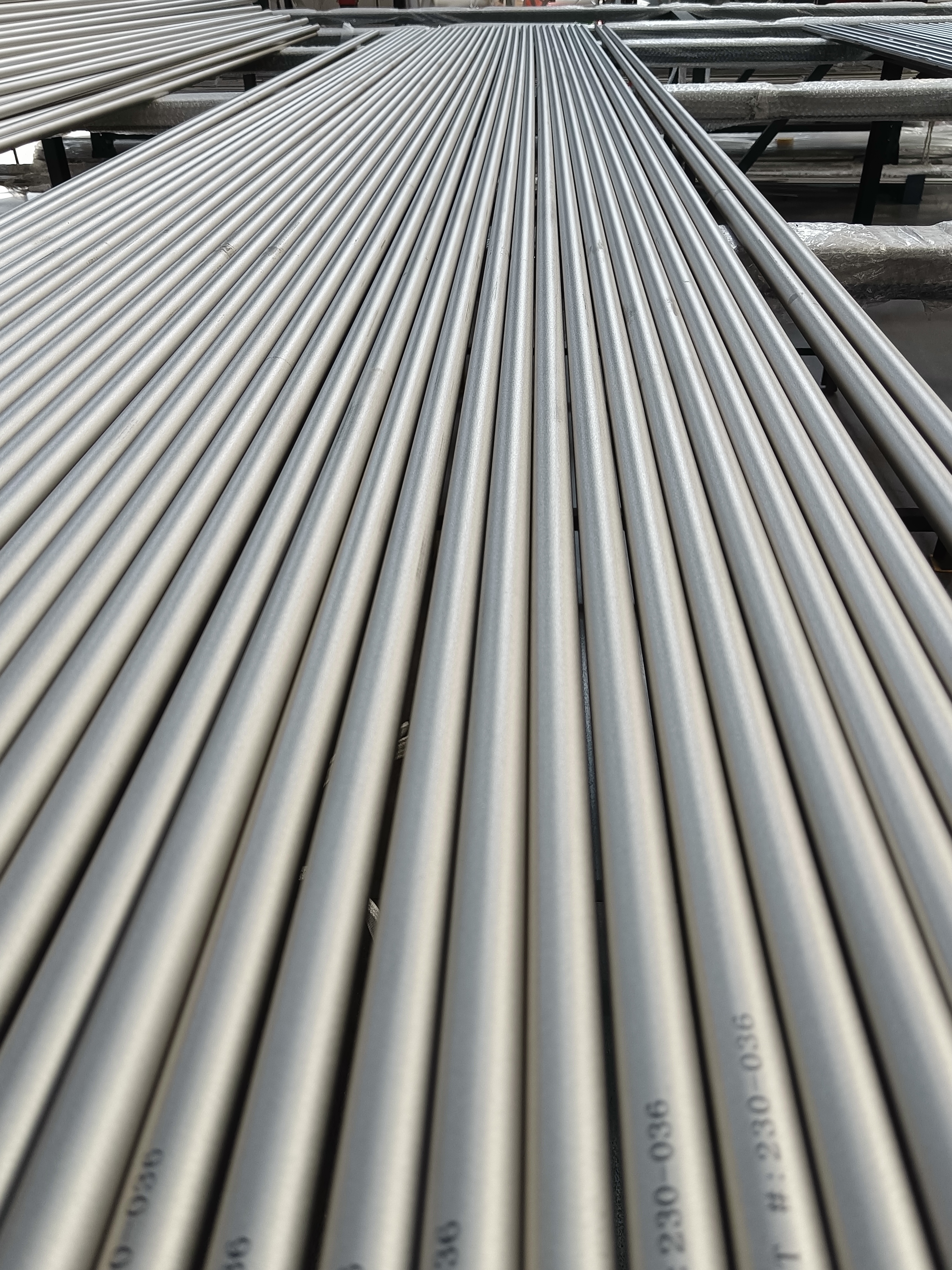

ASTM B622: Seamless nickel-alloy pipes and tubes.
ASME SB-622: Approved for pressure vessel applications.
UNS N06022: Unified numbering system designation.
C22 Nickel Alloy bridges the gap between extreme corrosion resistance and mechanical robustness, making it a critical material for modern industrial challenges. From chemical plants battling aggressive media to offshore rigs facing seawater corrosion, C22 ensures reliability where lesser materials fail. As industries push the boundaries of operational environments, this alloy continues to shine as a testament to advanced metallurgical engineering. For specific applications, consulting corrosion engineers and material data sheets is recommended to validate suitability.
